Fiberglass Wound Insulation Tube VS Fiberglass Wound Insulation Cylinder

Fiberglass wound insulation products including Fiberglass Wound Insulation Tubes and Fiberglass Wound Insulation Cylinders are commonly utilized in most industries for excellent electrical insulation, thermal resistance, and mechanical strength. Even though they have similar features in what they manufacture through and what they consist of, the two are structurally different, are to be applied differently, and serve different purposes.

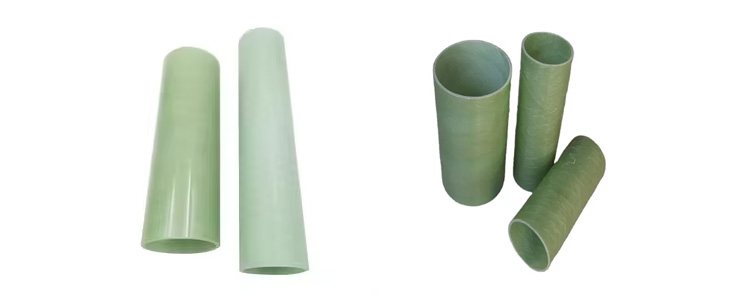

Tubes And Cylinders

Material Composition

Both products are built using fiberglass wound to perfection by methods like filament winding. Functionally, it’s a process of wrapping resin-impregnated fiberglass filaments around a mandrel to create a robust and lightweight structure. Fiberglass is used to ensure high thermal resistance, excellent dielectric properties, as well as good mechanical strength.

Manufacturing Process

The manufacture of tubes and cylinders is similar, largely. It produces both by layering fiberglass filaments under prescribed tension and curing the structure to the desired rigidity and durability. The resin you choose could vary between epoxy or polyester, depending upon the application.

Applications in Insulation

Insulating components are both tubes and cylinders in electrical and mechanical systems. They resist electrical conductivity typically well and are commonly used in transformers, switchgear, and other high-voltage equipment. They are also resistant to moisture, heat, and corrosion, and fit several rough conditions.

Differences Between Tubes and Cylinders

Structural Design

Fiberglass Wound Insulation Tube:

Long, hollow, and of uniform diameter, tubes generally have thin walls. Simply, they are meant for transporting or containerizing materials like encasing electrical cables or conducting fluids.

Fiberglass Wound Insulation Cylinder:

Shorter, thicker-walled, and/or their structure may be more robust. As structural components or enclosures where mechanical strength or load-carrying capacity are required, these are often used.

Primary Functions

Tube Applications:

When the focus is on flow, transmission, or coverage tubes are used. Applications include cable conduits, piping systems, and insulation sleeves in electrical networks.

Cylinder Applications:

For structural use such as spacers, supports or housings, cylinders are preferred. Mechanical strength, thermal stability, and dimensional precision are often required, and they are often used in such situations.

Shape and Dimensions

Tubes:

Generally, tubes are longer and more uniform in cross-section and are therefore used where a nearly constant diameter and small wall thickness are required.

Cylinders:

Variable dimensions, including thicker walls and shorter lengths, can be suited to a particular industrial need. They often have a shape that emphasizes stability and durability more than length.

When to Choose Tubes or Cylinders?

Fiberglass wound insulation tube.

Choose tubes when the application involves:

Cable insulation or protection from the electrical cable.

High dielectric strength is needed for lightweight structures.

The fluid or gas flow in insulated piping systems.

Wound Insulation Cylinder, fiberglass

Opt for cylinders when the application requires:

High load scenarios structural support.

Housing or enclosure enhanced mechanical durability.

Components with particular dimensional stability for industrial equipment.

Conclusion

Fiberglass Wound Insulation Tubes and Cylinders are alike in material and process but differ in use. Where coverage, transmission or lightweight insulation is required tubes, and cylinders are better suited for situations that require mechanical strength and structural stability. These differences of understanding offer the right product for each specific industrial requirement, this brings better performance and greater efficiency.
