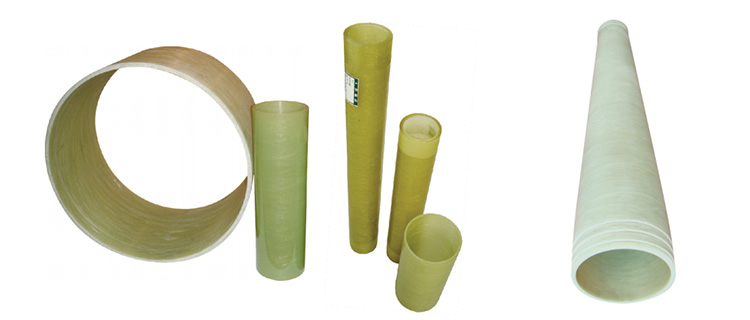

What is the Epoxy Glass Fiber Wound Tube?

The epoxy glass fiber wound tube is a high-performance composite material, consisting of filament wound glass fibers impregnated with epoxy resin around a mandrel and cured into a rigid tubular shape. The process leads to a material that provides great mechanical strength, good electrical insulation properties, and high resistance to the effects of moisture, chemicals, and heat. The tube’s design combines a lightweight structure with high mechanical robustness and is appropriate for use in electrical, industrial, and mechanical applications. It is normally used as an insulating part for transformers, switchgear, and other high-potential equipment. In addition, it is also extremely thermally stable and hence the best possible material for use in demanding environments like aerospace, automotive, and marine industries. The long-term reliability and resistance to degradation of the epoxy resin matrix make it a good choice for precision and high-stress applications.

Parameters

No.	Item No.	ID d, mm	OD D, mm	Length L, mm	Color
1	TWPF20*D*L	Ф20	On request	1050	Green Brown Black or colors on request
2	TWPF23*D*L	Ф23		1150
3	TWPF24*D*L	Ф24		1300
4	TWPF26*D*L	Ф26		2200
5	TWPF30*D*L	Ф30		1200+1200、1600*3
6	TWPF32*D*L	Ф32		1350
7	TWPF36*D*L	Ф36		1200*2、1600*2
8	TWPF38*D*L	Ф38		2200
9	TWPF40*D*L	Ф40		1900
10	TWPF43.1*D*L	Ф43.1		1600
11	TWPF43.5*D*L	Ф43.5		3550、1600
12	TWPF45*D*L	Φ45		1600
13	TWPF47*D*L	Ф47		1600
14	TWPF47.5*D*L	Ф47.5		1600、1700、2800、3300、3400
15	TWPF48*D*L	Ф48		1100、1600*5
16	TWPF50*D*L	Ф50		1300
17	TWPF54*D*L	Φ54		3000
18	TWPF55*D*L	Ф55		1700
19	TWPF56*D*L	Ф56		2800
20	TWPF57*D*L	Ф57		1300*2、1600*3
21	TWPF57.5*D*L	Φ57.5		1600
22	TWPF60*D*L	Ф60		1400
23	TWPF63*D*L	Ф63		1400
24	TWPF64*D*L	Ф64		1550*3、2850、1600*2
25	TWPF65*D*L	Ф65		1600
26	TWPF66*D*L	Φ66		1600
27	TWPF68*D*L	Ф68		3150
28	TWPF70*D*L	Ф70		1400、1600*3
29	TWPF73*D*L	Ф73		1650
30	TWPF76*D*L	Φ76		1600
31	TWPF77*D*L	Φ77		1600
32	TWPF80*D*L	Ф80		1700
33	TWPF83*D*L	Ф83		1400、2400*2、2800*2
34	TWPF90*D*L	Ф90		1450
35	TWPF92*D*L	Ф92		1500*5、2700*1
36	TWPF100*D*L	Ф100		1700
37	TWPF102*D*L	Ф102		1300*4、1600*5
38	TWPF110*D*L	Φ110		1600
39	TWPF112*D*L	Φ112		1600
40	TWPF130*D*L	Ф130		1450、1700
41	TWPF131.7*D*L	Ф131.7		1500*3、1600*3
42	TWPF140*D*L	Ф140		1100、1650
43	TWPF146*D*L	Ф146		3850
44	TWPF160*D*L	Ф160		1300
45	TWPF198*D*L	Ф198		1500*4、1900
46	TWPF210*D*L	Ф210		1900
47	TWPF230*D*L	Ф230		500
48	TWPF240*D*L	Ф240		1600
49	TWPF248*D*L	Ф248		1900
50	TWPF260*D*L	Ф260		1900
51	TWPF268*D*L	Ф268		1600
52	TWPF270*D*L	Ф270		1300
53	TWPF290*D*L	Ф290		1700
54	TWPF300*D*L	Ф300		2000
55	TWPF310*D*L	Ф310		1300
56	TWPF320*D*L	Ф320		1700
57	TWPF340*D*L	Ф340		2200
58	TWPF350*D*L	Ф350		1650
59	TWPF360*D*L	Ф360		1700
60	TWPF370*D*L	Ф370		1700
61	TWPF380*D*L	Ф380		1500
62	TWPF390*D*L	Ф390		1700
63	TWPF410*D*L	Ф410		1700
64	TWPF520*D*L	Ф520		1600
1．T—Taporel WP—Winding tubes F—Fiberglass D —OD L—-Length 2．Form above contains all current moulds. Please refer to our moulds and make designs based on them in order to save time and cost. 3． Length is based on customers’ request. Current molds as above. 4． Please indicate specifications and technical requirements with orders.

Are you interested in our products? Or would you like to receive customized services and solutions? Please let us know at info@taporel.com

Capacity to Process and Develop

1. Customized Structural Design

Based on the mechanical mechanical performance of the client’s requirements such as tensile strength, bending strength, and torsional strength we design the layer structure. Thus this includes selecting the reinforcement materials such as glass fibers or glass fabrics, the winding angle optimization as well as reliability of the product.

2. High Thermal Resistance

Epoxy Glass Fiber Wound Tube normally employs F class or H class heat resistance rating resin and curing agent. It facilitates the running of the tubes by the injection process acceptance criteria during the vulcanization of silicone rubber.

3. Vacuum Degassing for Electrical Insulation

By vacuum degassing resin and curing agent mixtures before use, exceptional electrical insulation properties are assured, with partial discharge levels ≤ 5pC.

4. Enhanced Airtightness

The resin system is enhanced by the addition of special materials so that the wound tubes are suitable for demanding applications.

5. Corrosion Resistance Customization

If necessary, we can line the inner wall of the tube with a material that resists corrosion from SF₆ gas, so that the equipment is suitable for gas-insulated systems.

6. Custom Specifications

Rather than carrying pre-shaped tubes, Tubes Unlimited can design and manufacture tubes of varying sizes and specifications to fit client requirements.

7. Production Capability

We can produce tubes up to 10 meters in length and up to 1m in outer diameter, covering a wide range of industrial requirements.

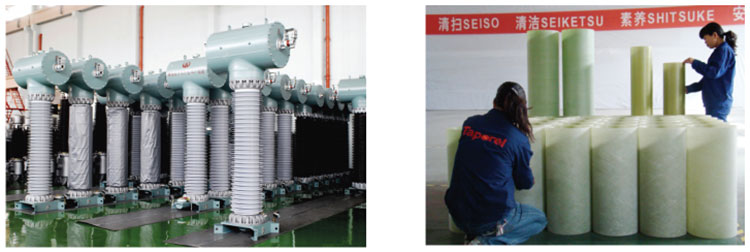

Application

1. Zinc oxide arresters

Porcelain shell and composite shell zinc oxide arresters are the materializations of the insulator core structure and insulation element, using mechanical stability and safe performance under high voltage conditions.

2. Hollow composite bushings and gas-insulated high-voltage switchgear.

SF₆ gas-insulated switchgear systems and instrument transformers are an integral part of SF₆ gas-insulated switchgear and play a vital role in rugged insulation, excellent airtightness, and gas corrosion resistance.

3. Transformer tap changers

As key insulating components in transformer tap changers, capable of withstanding high electrical and mechanical stresses during voltage regulation operations.

4. Usage for wrapping tubes for high voltage circuit breaker arc extinguishing chambers or, current limiting fuses.

The high mechanical strength, heat resistance, and reliability make epoxy glass fiber wound tubes suitable for arc extinguishing chambers in high-voltage circuit breakers and current-limiting fuses for harsh operating environments.
